High Precision Pneumatic Linear Positioner For Angle Valve / Global Valve

Brand Name : ABB

Model Number : TZIDC 200，210，

Certification : CE EAC

Place of Origin : America

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P, MoneyGram

Supply Ability : 500 Set Per Month

Delivery Time : 7 to 20 Work days

Packaging Details : Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)

Set point : 4 to 20 mA

Valve travel : 3.6 to 300 mm

Opening angle : 24 to 100°

Material : Aluminum

Communication : HART® field communication protocol

Contact Now

Explosion-proof ABB smart Digital Valve Positioner TZIDC with HART communication

Product Introduction

The TZIDC digital positioner requires compressed air as the energy source, the compressed air must meet the requirements of instrument air quality according to the following table. If the available instrument air does not meet this requirement, then a suitable external filter is needed in the supply line

Quick Details

Place of Origin	Sweden
Brand Name	ABB
Model Number	TZIDC 100 TZIDC 110 TZIDC 120 TZIDC 200 TZIDC 210 TZIDC 220 TZIDC 300
Diagnostics	5 Pressure Sensors
Materials	Case/Cover: - Aluminum ASTM 360
Welded	BW or SW
Operating Temperature	Standard Temperature
Screwed	NPT 1/4" through 2" (20 through 50 mm)
Body Materials	Cast iron PFA lined
Actuators	Model 35 spring-opposed rolling diaphragm
Trim	Eccentric rotary plug
inherent Characteristics	Linear

Fieldbus & HART – TZIDC-200

ABB’s freedom of choice offers the right driver for the major fieldbus protocols suitable for ABB devices.
The version matrix document shows for each protocol the software revision that’s compatible to the hardware and firmware revision of the device.

Read first
– Software/hardware revisions: Version matrix

Software and documentation:

HART
– Software: DTM, EDD

Stand-alone tool:
ABB offers software tools that use the listed drivers in the table above for your device configuration and monitoring requirements.

Specifications

Actuation	Double-acting, Spring-return, Linear
Control Type	On/Off, Throttling, Positioning
Operating Temperature	Standard Temperature
Power Source	Pneumatic
Application	Angle Valve, Global Valve

High Precision Pneumatic Linear Positioner For Angle Valve / Global Valve

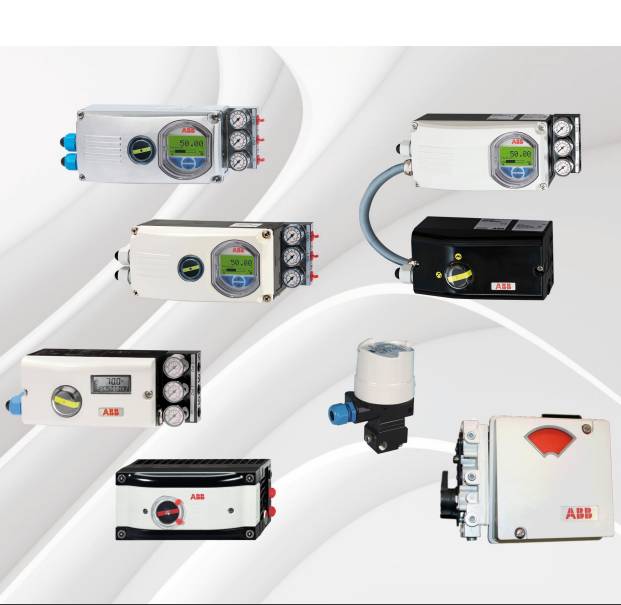

Detailed Image

High Precision Pneumatic Linear Positioner For Angle Valve / Global Valve

Packaging and Delivery

Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 603040 (cm)

The products will be shipped after receiving the deposit or full payment within 15 working days

Our Service

1. Swift delivery
For common parts, we can deliver the goods within 3 days

2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3. Quality Assurance

4. Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.

5. Quickly response
Our staff will keep 24h online and answer your question very quickly.
